Diamond Expanded Metal Lath

KG Expanded Metal Lath

Expanded Metal Lath Specifications

  • Sheet metal thickness : 0.3 mm～12.0 mm。
  • expansion Metal Lath material: black iron, galvanized, aluminum, white iron.

KG expanded Metal Lath product features

  • The mesh of the Metal Lath has many changes and has the advantage of customization.
  • Metal Lath can be applied to various metal materials and surface treatment.
  • Metal Lath material cost advantage.
  • Metal Lath has a wide range of applications.

KG expanded Metal Lath use

  • KG metal expansion mesh can be used for building exterior wall curtains and light compartments
  • KG metal expansion mesh can be used for industrial style iron mesh compartments, breathable and ventilated partitions
  • KG metal expanded mesh can transmit light to the plate and has a wide range of applications

KG Expanded Metal Lath Features

  • KG metal expansion mesh is a metal expansion mesh mesh developed and designed by KEN GI. According to customer needs, the expansion mesh mesh is customized for the project.
  • KG general expanded Metal Lath provides other options than engineering Metal Lath. It is more flexible and widely used in its use and application, and is popular among ordinary consumers.
  • KG expanded Metal Lath can be used in plant equipment, mechanical equipment, military facilities, automobile industry, shipbuilding industry, etc. It is the best material for space isolation, light refraction isolation, and ventilation.
  • The extended application of KG metal expansion mesh can be used in exterior structure design, as large as building exterior wall curtains, as small as the design of mechanism parts. Vehicle ventilation louvers, fences, railings, protective nets, cement reinforcement materials, various machine safety fences, etc.

Specification table of commercially available metal expansion nets

model Mesh size (mm)
SWD LWD
KG1424 14.0 24.0
KG1630 16.0 30.5
KG2038 20.0 38.0
KG2862 28.0 62.0
KG4601 46.0 101.6

KG metal expansion net customer product specification sheet

model Mesh size(mm) model Mesh size(mm) model Mesh size(mm)
SWD LWD SWD LWD SWD LWD
KG0306 3.0 6.0 KG1323 13.0 23.0 KG4076 40.0 76.2
KG0408 4.0 8.0 KG1330 13.0 30.0 KG4215 42.0 115.0
KG0506 5.0 6.0 KG1542 15.0 42.0 KG4635 46.0 135.0
KG0510 5.0 10.0 KG1875 18.2 75.0 KG4835 48.0 135.0
KG0612 6.0 12.0 KG2337 23.0 37.0 KG5014 50.0 114.0
KG0708 7.0 8.0 KG2457 24.0 57.0 KG5053 50.0 153.0
KG0713 7.0 13.0 KG2461 24.0 61.0 KG5552 55.0 152.0
KG0816 8.0 16.0 KG2650 26.0 50.5 KG7503 75.0 203.2
KG0929 9.0 29.0 KG3075 30.0 75.0 KG1003 100.0 203.2
KG1020 10.0 20.0 KG3575 35.0 75.0 KG1615 160.0 215.0
KG1122 11.0 22.0 KG3622 36.0 122.0
KG1231 12.0 31.5 KG3635 36.0 135.0

XE Economical Metal Expansion Mesh Specification Sheet

type serial number Abbreviation Mesh size Net strip size
Mesh Size Strand Size(mm)
Category Number Inch SW LW T
XE 051K 1 Point hole 4 8 0.5
053K 3 Point hole 11 21 0.5
054K 4 Point hole 14 24 0.5
102K 2 Point hole 6 12 1
103K 3 Point hole 11 21 1
104K 4 Point hole 14 24 1
105K 5 Point hole 16 30.5 1
164K 4 Point hole 14 24 1.6
165K 5 Point hole 16 30.5 1.6
166K 6 Point hole 20 38 1.6
168K 1 Inch hole 28 62 1.6
204K 4 Point hole 14 24 2
206K 6 Point hole 20 38 2
208K 1 Inch hole 28 62 2
238K 1 Inch hole 28 62 2.3
301K 1 Inch hole 24 61 3
308K 1 Inch hole 28 62 3
328K 1 Inch hole 28 62 3.2
21K 46 101.6 4.5
22K 46 101.6 6
24K 46 101.6 8

Dimensions and designations of each part of the expansion net

REGULAR EXPANDED METAL 標準擴張網

SW : Short way of diamond 短邊網板中心尺寸
LW : Long way of diamond 長邊網板中心尺寸
Thickness (T) : 原料鋼板厚度
Strand Width (W) : 網目送料厚度

FLATTENED EXPANDED METAL輾壓平擴張網

SW : Short way of opening短邊孔内尺寸
LW:Long way of opening長邊孔内尺寸
S：LENGTH OF SW SW方向製品長度
L：LENGTH OF LW LW方向製品長度
L向最大寬度10呎
S向長度不限
SW:160mm以上

KG Industrial Metal Mesh Model

KG0408
KG0612
KG1121
KG1424
KG1524
KG1630
KG2038
KG2860

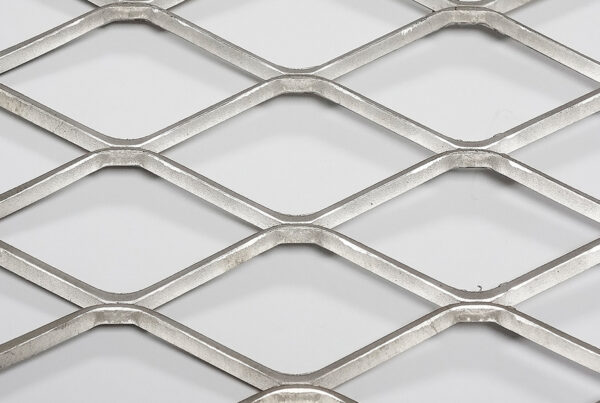

KG4601
